Ubiquiti UniFi switch Gen2 USW-PRO-8-POE 8x1000Mbps + 2xSFP+ POE+/POE++ (120W) USW-PRO-8-POE

Podrobný popis

Technical Specifications


Mechanical
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.1 kg (4.6 lb)
Enclosure materials Polycarbonate, metal
Mount material Polycarbonate


Hardware
Management interface Ethernet In-Band

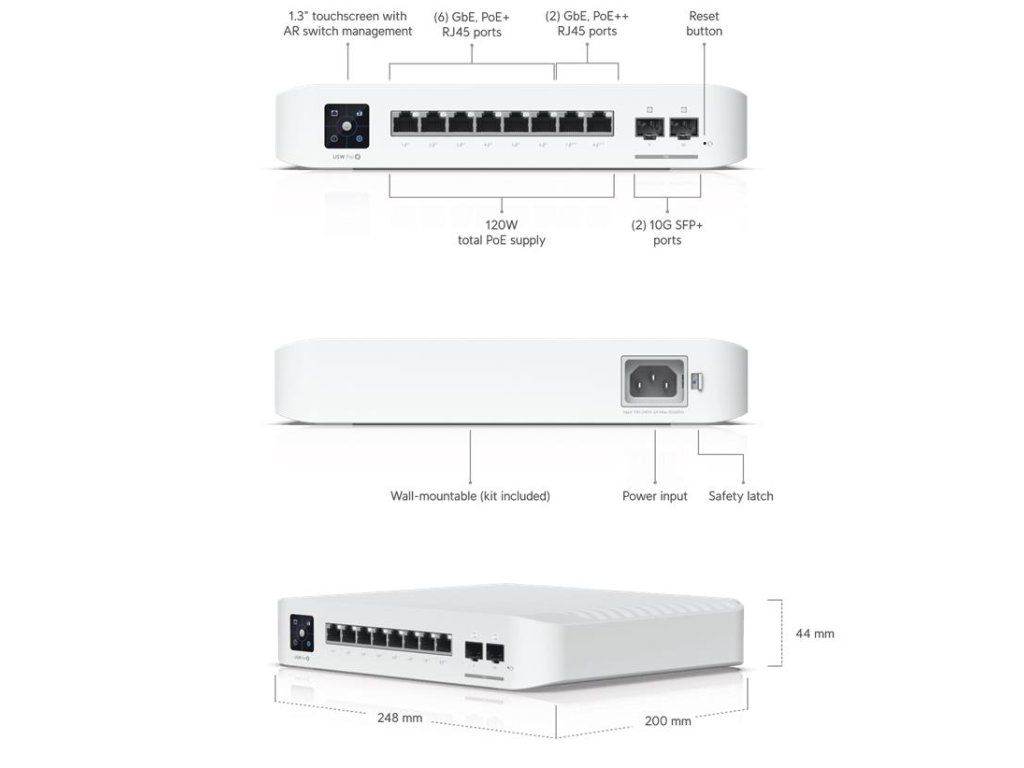

Networking interface (8) GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 28 Gbps
Switching capacity 56 Gbps
Power method Universal input, 100—240V AC, 2A Max.
Power supply AC/DC, internal
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
Total available PoE 120W
Max. PoE wattage per port by PSE  PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode  PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V
LCM display  (1) 1.3" touchscreen
LEDs  RJ45 ports: link/activity
Button Factory reset
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC


Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks

Application Requirements
UniFi Network  Version 7.5.176 and later
