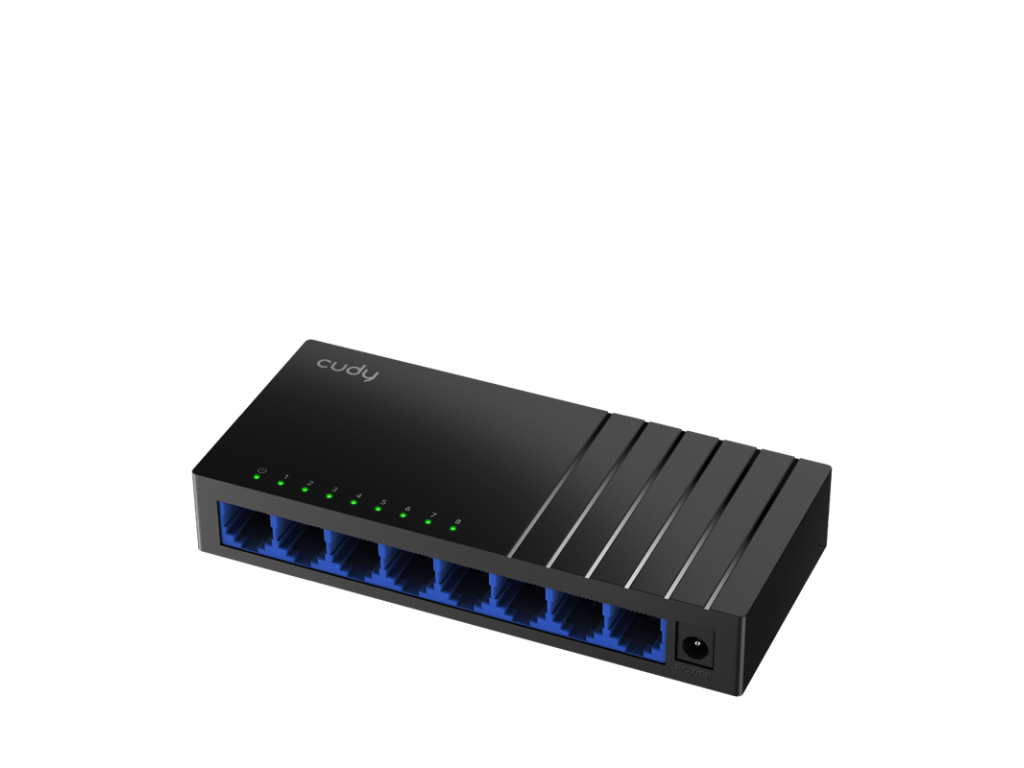

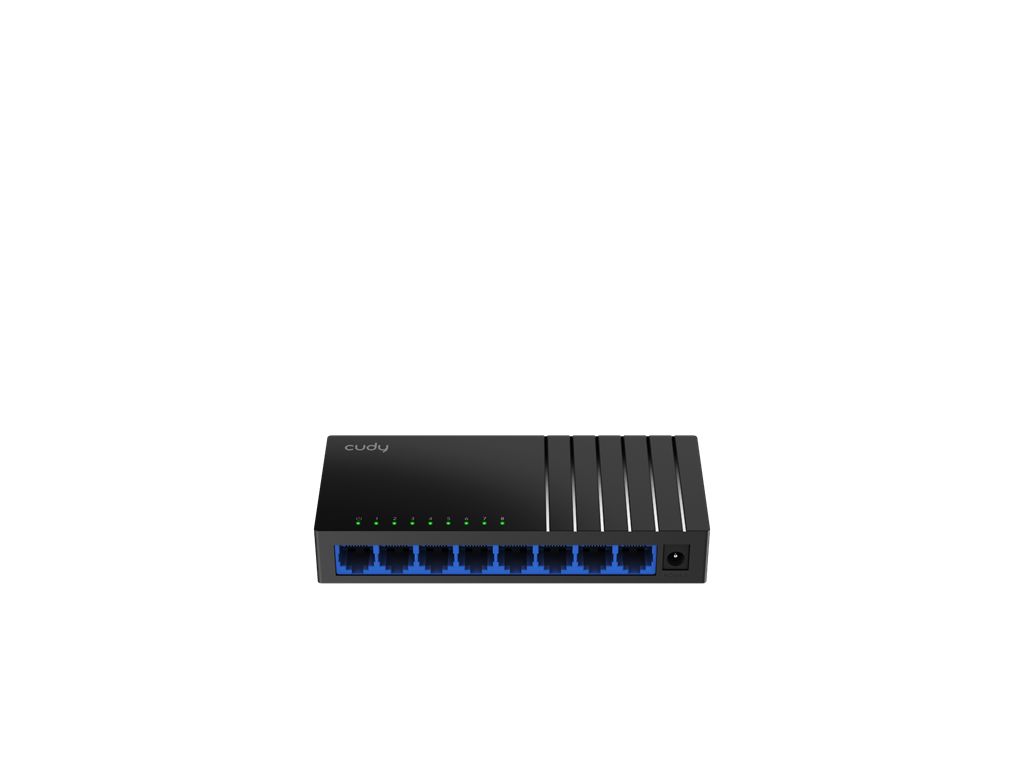

Cudy GS108D - 8-Port Gigabit Switch, 8 10/100/1000M RJ45 Ports, Desktop, Power Saving, Plug & Play GS108D

Podrobný popis

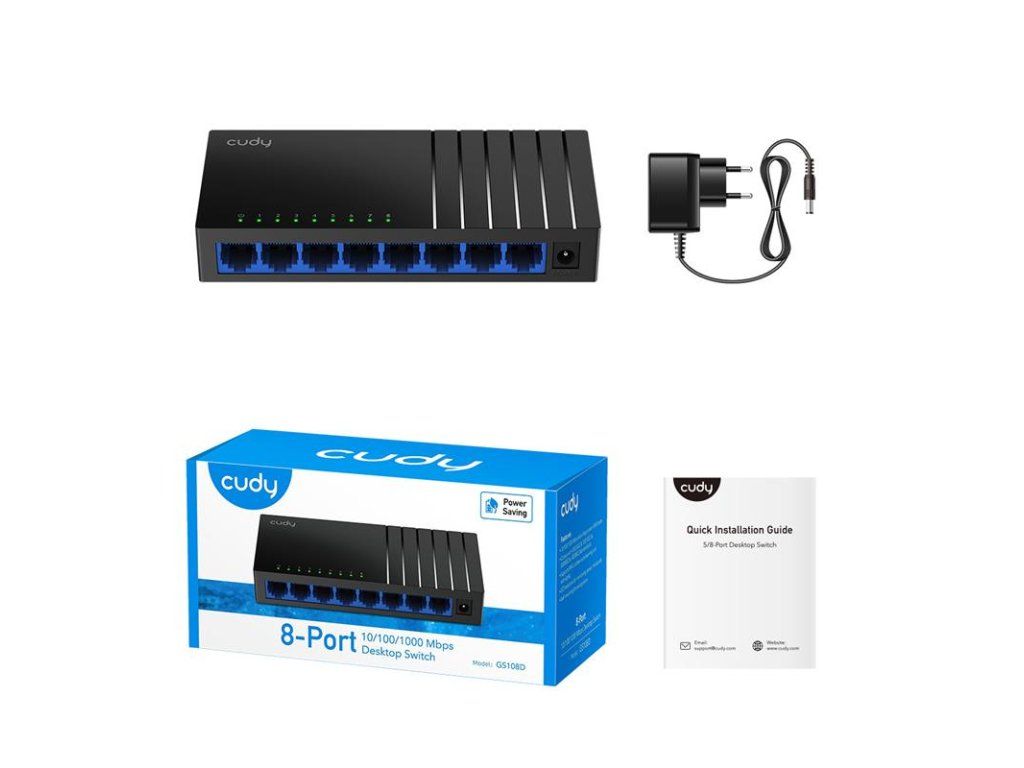

8-Port Gigabit Unmanaged Switch GS108D 4.0 Interfaces Gigabit RJ45 Ports 8 LED Power Speed/Link/ACT of Each Ethernet Port Power Input DC Jack Performance Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 170 meters at Gigabit MAC Address Table 8192 Max Switching Capacity 16 Gbps Max Forwarding Rate 11.904 Mpps Jumbo Frame 15 KB Packet Buffer 4 Mbit Power Basic Power Saving True Power Methods DC DC 5V 0.55A Max Power Consumption 2.75W Idle Power Consumption 2.2W Switching 802.3 Protocols 802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T L2 Features IGMP Snooping Loop Prevention Reliability Lightning/Surge Protection 2kV ESD Contact Protection 4kV ESD Air Protection 8kV Environment Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?) Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing Mechanical Dimension 138×61.5×24 mm Product Weight 89 g (3.14 oz.) Casing Material Plastic Installation Desktop Wall-mount Package Content GS108D Power Adapter Installation Guide
