16-Port Gigabit Desktop Switch PORT: 16× Gigabit RJ45 Ports SPEC: Desktop Steel Case FEATURE: Plug and Play TL-SG116

Podrobný popis

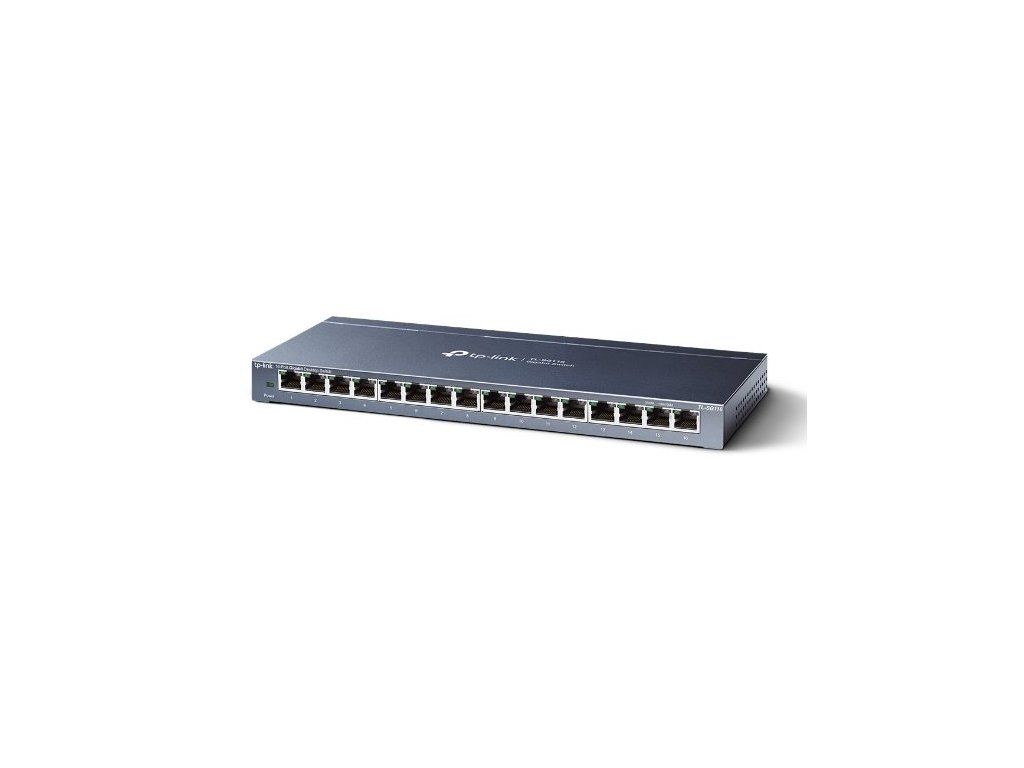

16-Port Gigabitový stolní Switch
TL-SG116
16 portů RJ45 s automatickou adaptací 10/100/1000Mb/s podporujících Auto-MDI/MDIX
Technologie Green Ethernet šetří spotřebu energie
Řízení toku IEEE 802.3x zajišťuje spolehlivý přenos dat
Ocelové pouzdro, desktopová konstruce nebo konstrukce s upevněním na stěnu
Podpora 802.1p / DSCP QoS a funkce IGMP Snooping
Zapoj a hraj, bez nutnosti konfigurace

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
Max Power Consumption 10W(220V/50Hz)
Max Heat Dissipation 34.12BTU/h
PERFORMANCE
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 10KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents 16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
