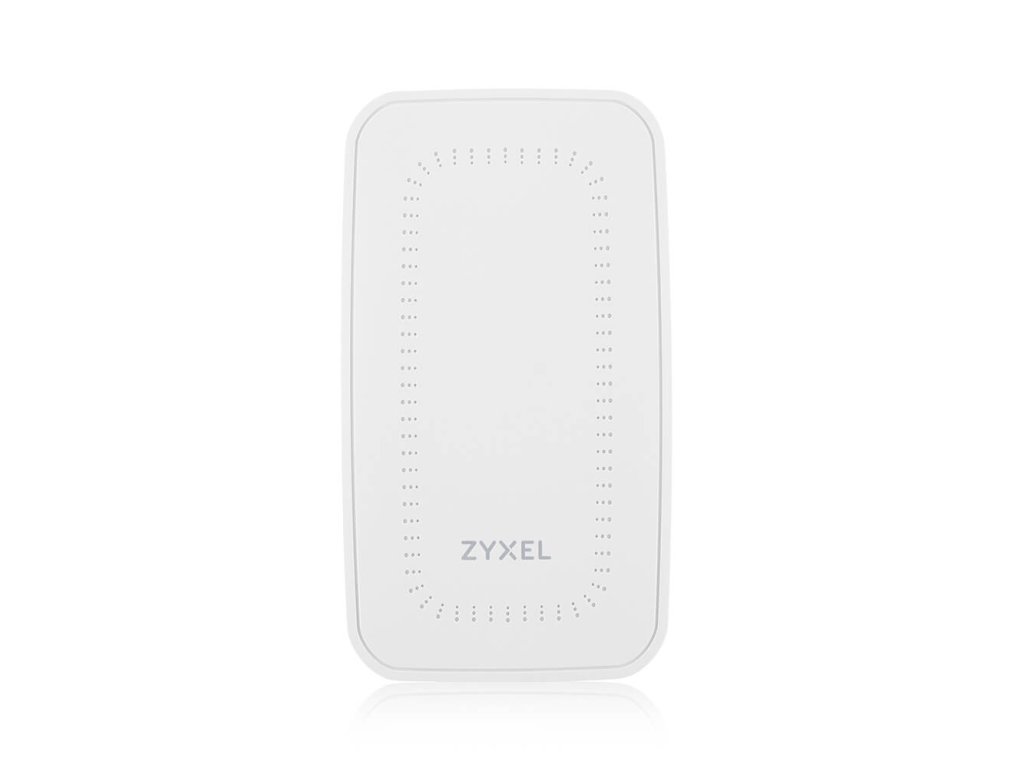

ZYXEL AP WAX300H Single Pack WAX300H-EU0101F

Podrobný popis

ZYXEL AP WAX300H Single Pack Specifications Wireless Standard *IEEE802.11 ax/ac/n/g/b/a MIMO *MU-MIMO Wireless speed *2.4GHz: 575 Mbps *5GHz: 2400 Mbps Frequency band *2.4 GHz: *USA (FCC): 2.412 to 2.462 GHz *Europe (ETSI): 2.412 to 2.472 GHz *5 GHz: *USA (FCC): 5.15 to 5.35 GHz, 5.470 to 5.850 GHz *European (ETSI): 5.15 to 5.35 GHz, 5.470 to 5.725 GHz Bandwidth *20-, 40- ,80- and 160-MHz Conducted typical transmit output power*1 *US (2.4GHz/5GHz): *23/23 dBm *EU (2.4GHz/5GHz): *19/23 dBm RF Design Antenna type *Internal Antenna Antenna gain *2.4 GHz: 3 dBi, 2X2:2SS *5 GHz: 4 dBi, 2x2:2SS Minimum receive sensitivity *Min. Rx sensitivity up to -99 dBm WLAN Feature Band steering, WDS/Mesh*2, DCS, Advanced Cellular Coexistence *Yes Fast roaming *Pre-authentication, PMK caching and 802.11r/k/v Load balancing *No Security Encryption *WPA *WPA2 *WPA3 Authentication *IEEE 802.1X *RADIUS anthentication Access management *L2-isolation *MAC filtering *Rogue AP detection Networking IPv6, VLANs, WMM, U-APSD *Yes Management Operating mode *Nebula cloud managed *Controller-managed *Standalone ZON Utility *Discovery of Zyxel switches, APs and gateways *Centralized and batch configurations: *IP configuration *IP renew *Device reboot *Device locating *Web GUI access *Firmware upgrade *Password configuration Web UI/CLI *Yes SNMP *No Physical Specifications Item *Dimensions (WxDxH)(mm/in.) - 173 x 97 x 29 / 6.81 x 3.82 x 1.14 *Weight (g/lb.) - 310/0.68 Packing *Dimensions (WxDxH)(mm/in.) - 195 x 120 x 53 / 7.68 x 4.72 x 2.09 Weight (g/lb.) - 483/1.06 Included accessories *Multi-purpose mounting bracket with screws Optional accessories (Sold separately) *WAC500H-DMNT10F: Desktop mount Kit (10 sets) MTBF (hr) *750,816 Physical Interfaces Ethernet port *1x 10/100/1000M uplink *3x 10/100/1000M downlink(including one PoE PSE) Power *PoE (802.3at): power draw 19 W(include 5W for PoE PSE) PoE modes *IEEE802.3af: Not supported *IEEE802.3at: Unrestricted *IEEE802.3bt: - Environmental Specifications Operating *Temperature - 0°C to 50°C/32°F to 122°F *Humidity - 10% to 90% (non-condensing) Storage *Temperature - -40°C to 70°C/-40°F to 158°F *Humidity - 10% to 90% (non-condensing) Certifications Radio *FCC Part 15C *FCC Part 15E *ETSI EN 300 328 *EN 301 893 *LP0002 *EN 60601-1-2 EMC *FCC Part 15B *EN 301 489-1 *EN 301 489-17 *EN55022 *EN55024 *EN61000-3-2/-3 *BSMI CNS13438 Safety *EN 60950-1 *IEC 60950-1 *BSMI CNS14336-1
