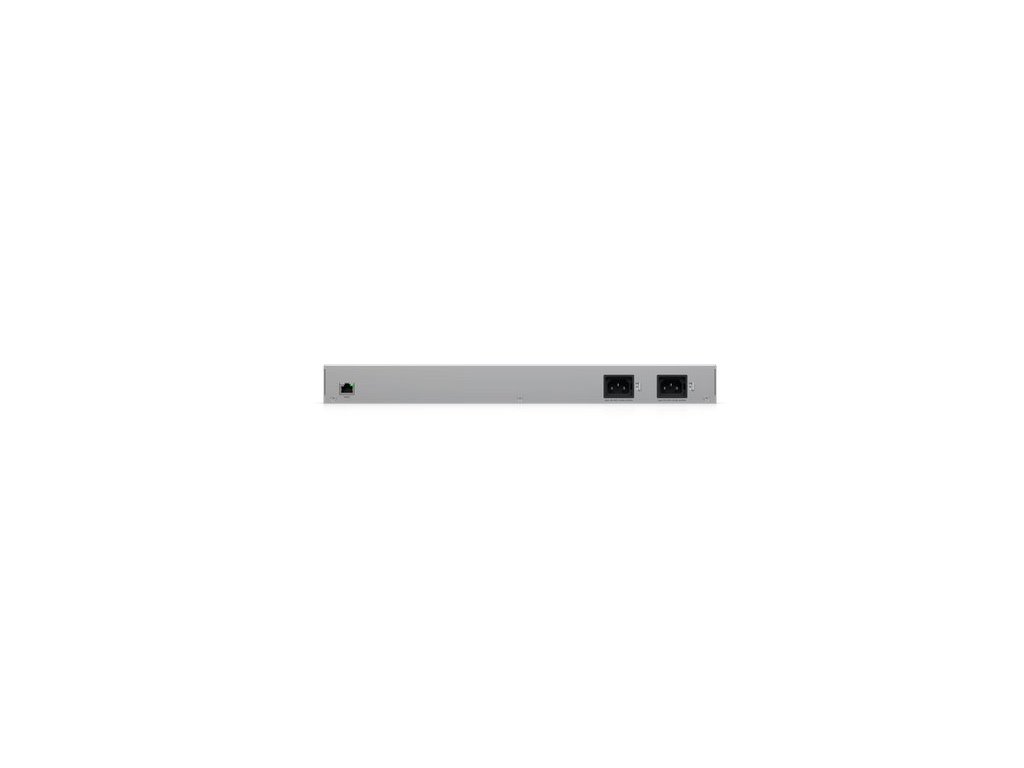

Ubiquiti UniFi switch USW-WAN switch 3x 10G SFP+ pro UniFi Gateways USW-WAN

Podrobný popis

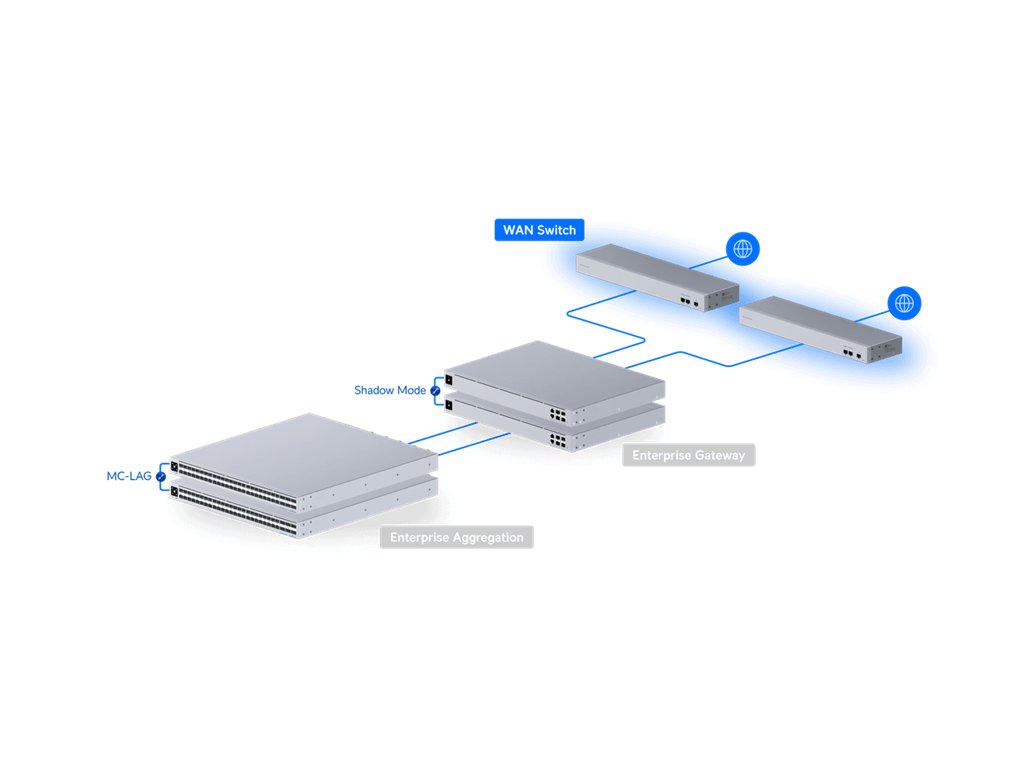

10G SFP+ WAN Switch pro zapojení dvou routerů se službou Shadow Mode High Availability UniFi Gateways do infrastruktury jednoho poskytovatele připojení = ISP.

Overview
Dimensions  442.4 x 120 x 43.7 mm
Port Layout  1 GbE RJ45  1 (1G/100M/10M)
10G SFP+  3 (10G/1G)

Redundancy   (2) AC inputs
Form Factor   Rack mount (1U)


Performance
Switching Capacity   20 Gbps
Total Non-Blocking Throughput   10 Gbps
Forwarding Rate   15 Mpps


Hardware
Max. Power Consumption   13W
Power Method   (2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method   AC input
Power Supply   (2) AC/DC, internal, 36W
Supported Voltage Range   100—240V AC
Management   Ethernet
Weight   Without mounting brackets: 2.2 kg (4.85 lb)    With mounting brackets: 2.3 kg (5.1 lb)
Enclosure Material   SGCC steel
Mount Material   SGCC steel
ESD/EMP Protection   Air: ± 16kV, contact: ± 22kV
Ambient Operating Temperature   -5 to 40° C (23 to 104° F)
Ambient Operating Humidity    10 to 90% noncondensing
LEDs
Ethernet   Yes
SFP+   Yes
System   Yes
Certifications   CE, FCC, IC
NDAA Compliant   Yes


Software
Application Requirements
UniFi Network   Version 9.1.119 and later
