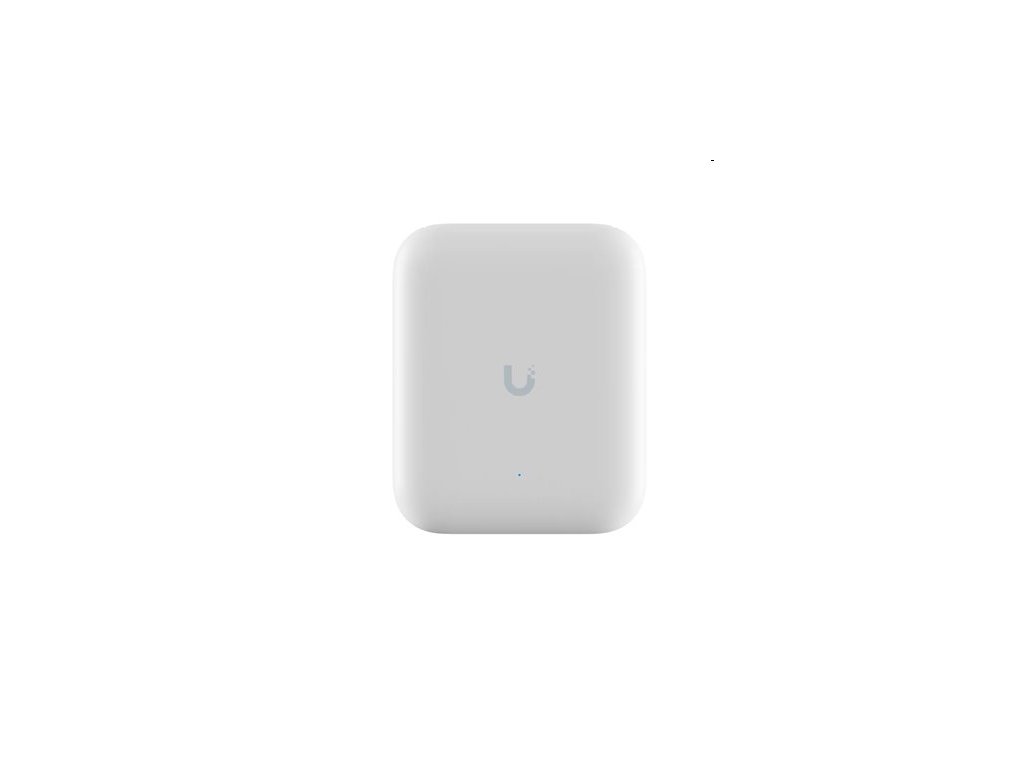

Ubiquiti UniFi AP 7 Outdoor WiFi7 (688/4300/---Mbps) U7-Outdoor

Podrobný popis

WiFi 7 AP pro venkovní použití se 4 samostatnými streamy a integrovanou super-anténou a montážním držákem.


- WiFi 7
- 4 samostatné streamy
- pokrytí 465 m² (v otevřeném prostoru s integrovanou super-anténou)
- softwarové přepínání mezi integrovanou anténou a výstupy na externí anténu
- 250+ samostatných připojených klientů
- napájení přes POE+
- 2.5 GbE uplink

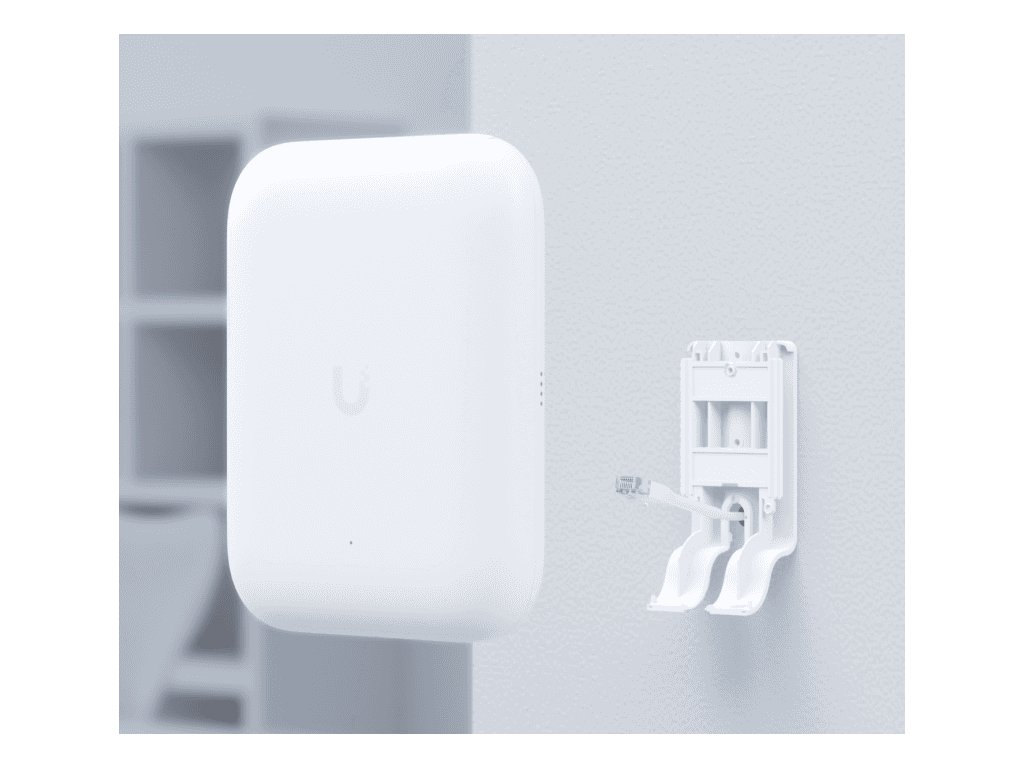

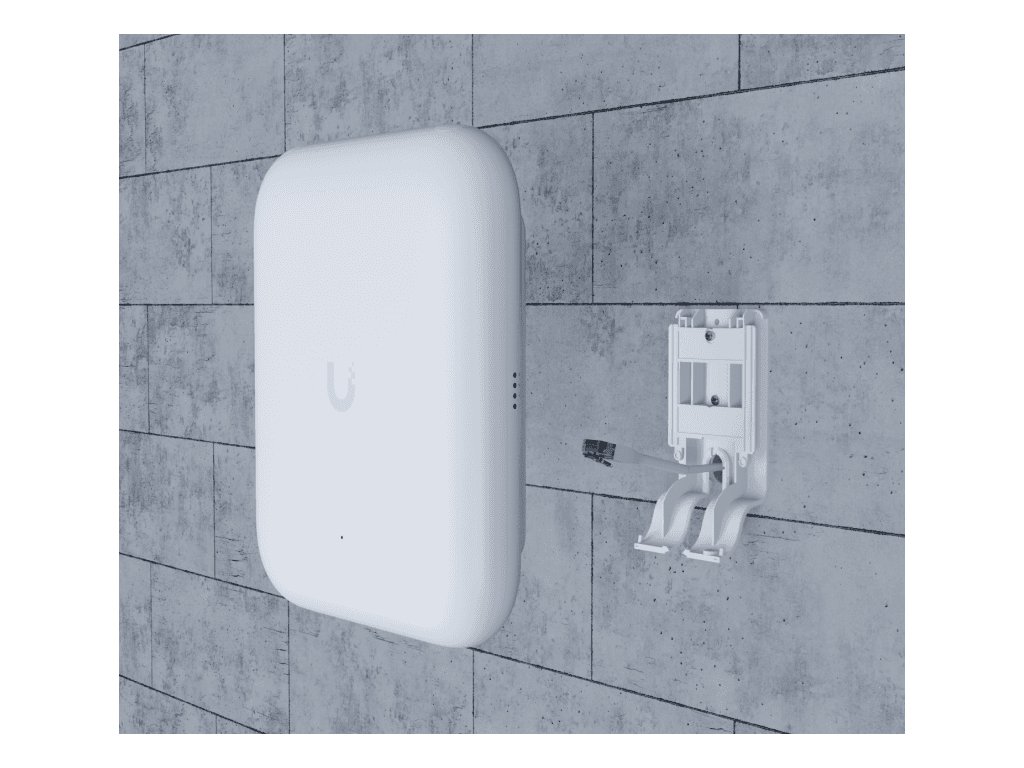

- montážní držák na zeď / tyč
- vodotěsné pouzdro IP67

Technical Specifications
Mechanical

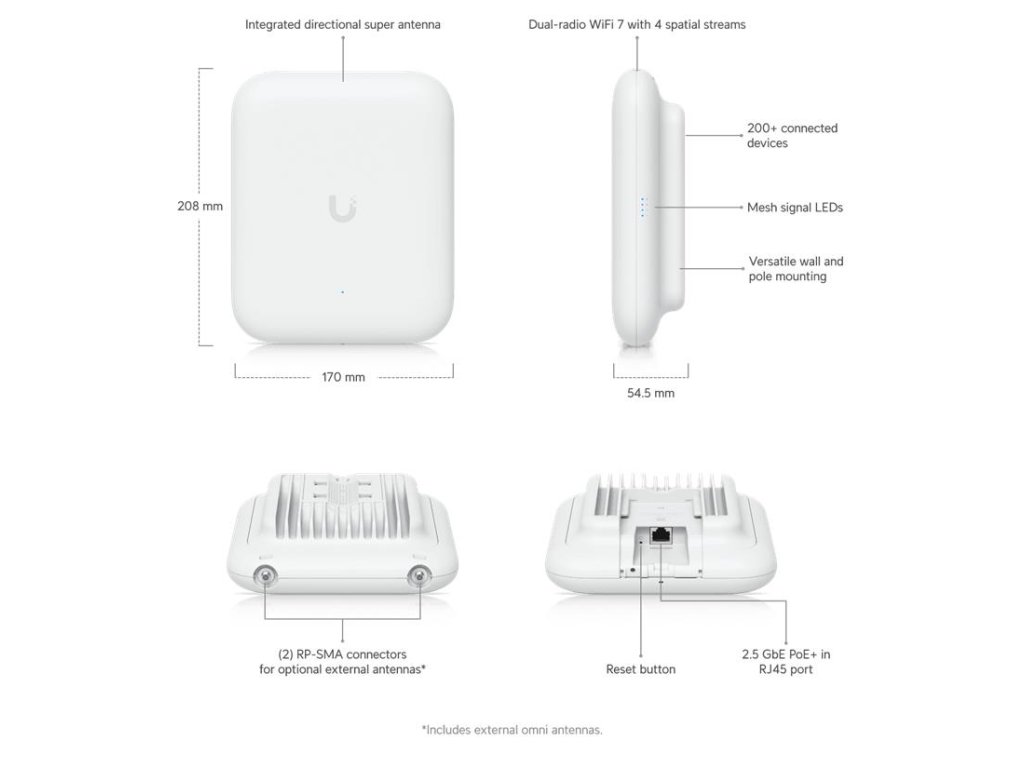

Dimensions 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
Weight 1.2 kg (2.6 lb)
Enclosure material UV-stabilized polycarbonate, aluminum alloy
Mount material Polycarbonate, SGCC steel

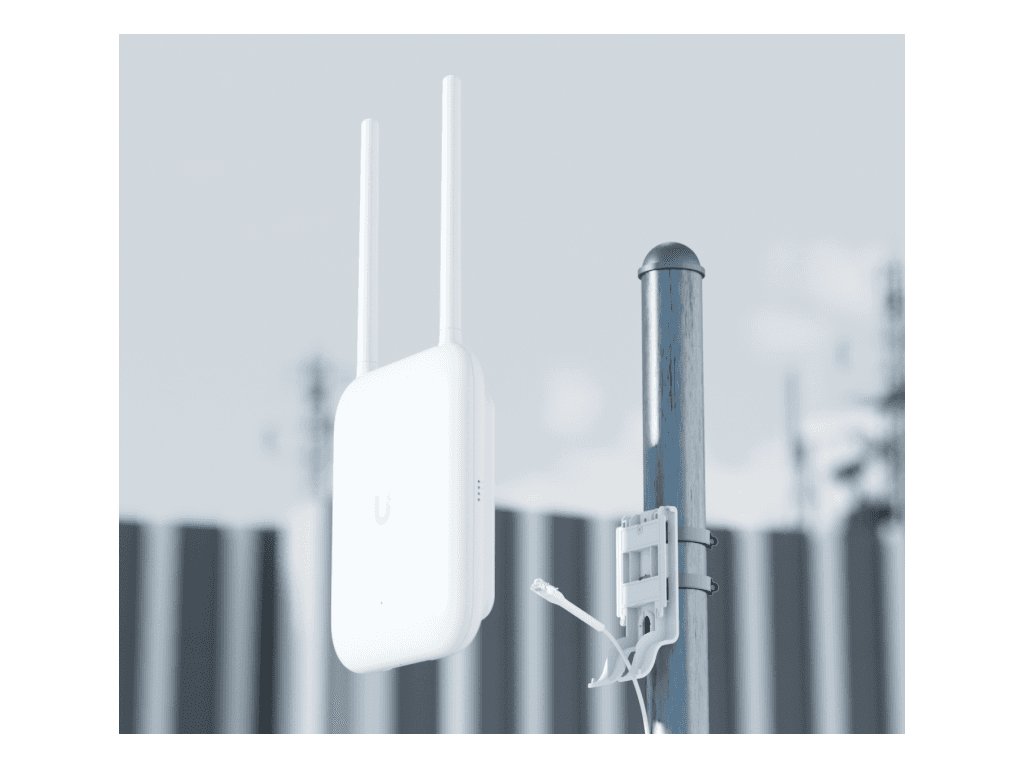

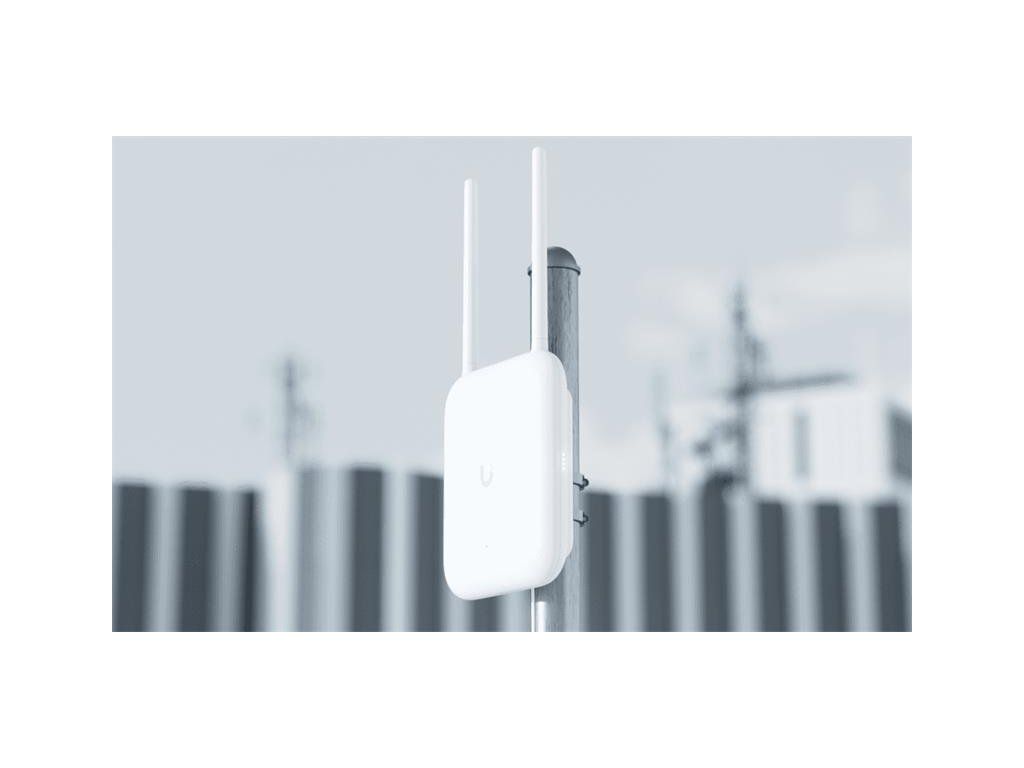

Pole mount diameter 25–60 mm (1–2.36") on pipe outer diameter
Wind survivability 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weatherproofing IPX6


Hardware
Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE Switch
Supported voltage range 42.5—57V DC
Max. power consumption 19W
Max. TX power
2.4 GHz   23 dBm
5 GHz   26 dBm
6 GHz   –

MIMO
2.4 GHz   2 x 2 (DL/UL MU-MIMO)
5 GHz   2 x 2 (DL/UL MU-MIMO)
6 GHz    ---

Max. data rate
2.4 GHz   688 Mbps (BW40)
5 GHz   4.3 Gbps (BW240)
6 GHz   ---

Antenna gain
2.4 GHz   Directional internal: 8 dBi/External omni: 3 dBi
5 GHz   Directional internal: 12.5 dBi/External omni: 4 dBi
6 GHz  ---

Antenna beamwidth
2.4 GHz   90°
5 GHz   45°
6 GHz   ---

Antennas (1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna
LEDs (1) Power: white/blue
(4) Mesh signal: blue
Button Factory reset

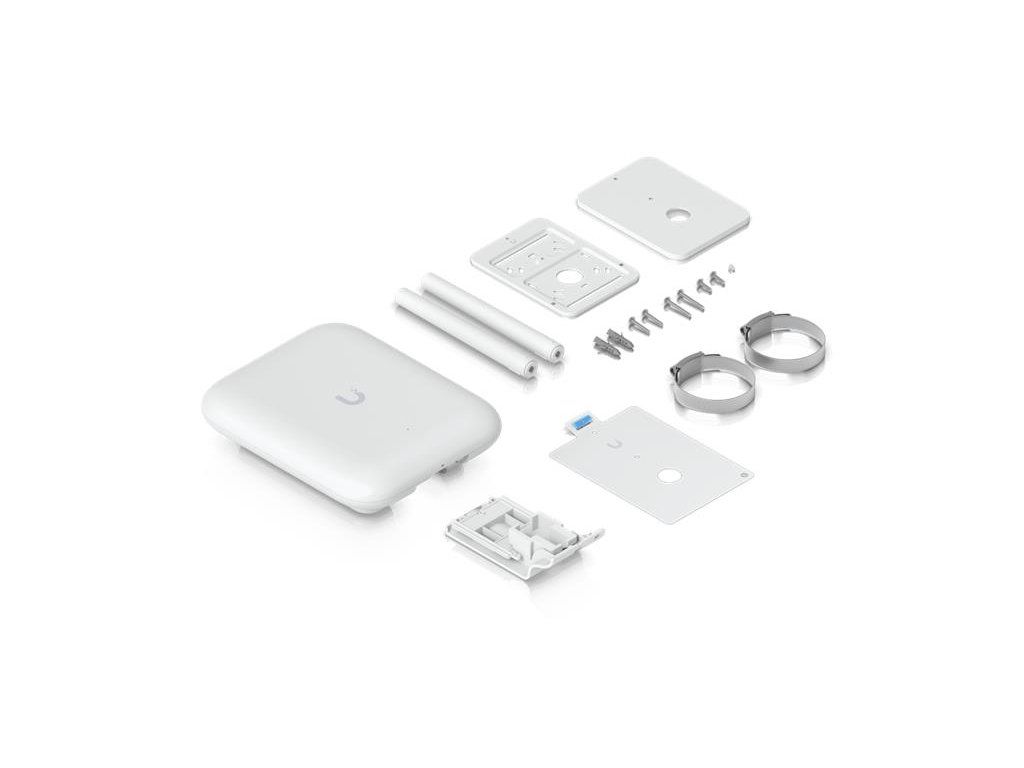

Mounting Wall, ceiling, pole (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 250+

Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

Application Requirements
UniFi Network Version 8.3 and later
