Podrobný popis
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices

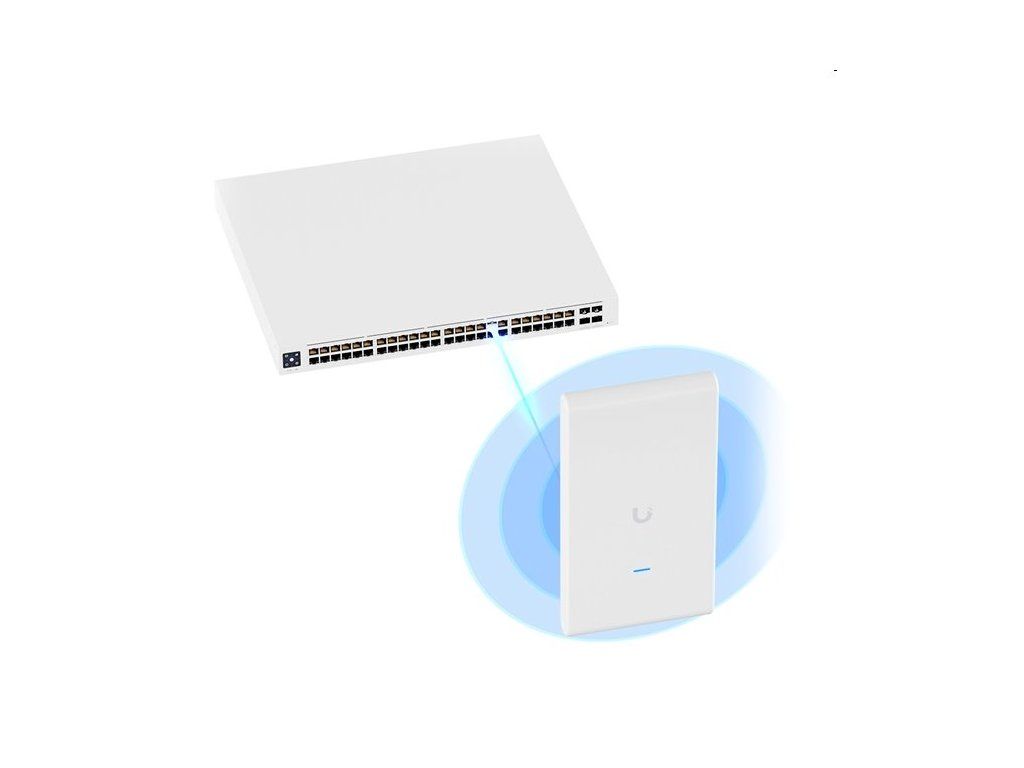

Powered using PoE
GbE uplink with (1) GbE passthrough port

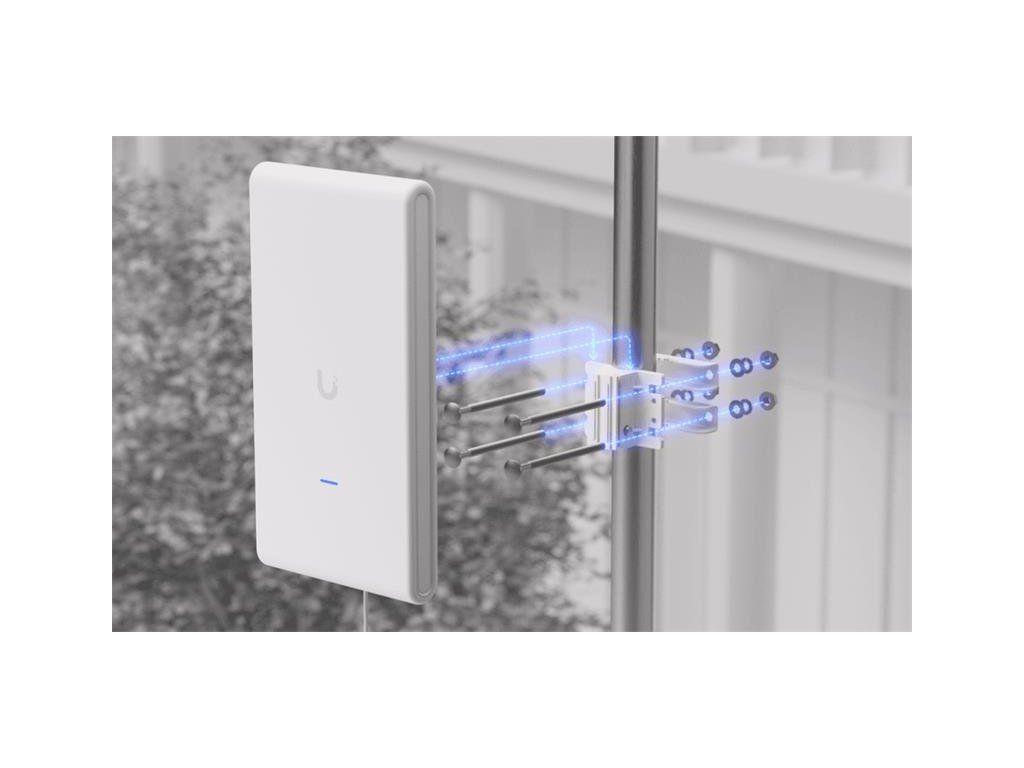

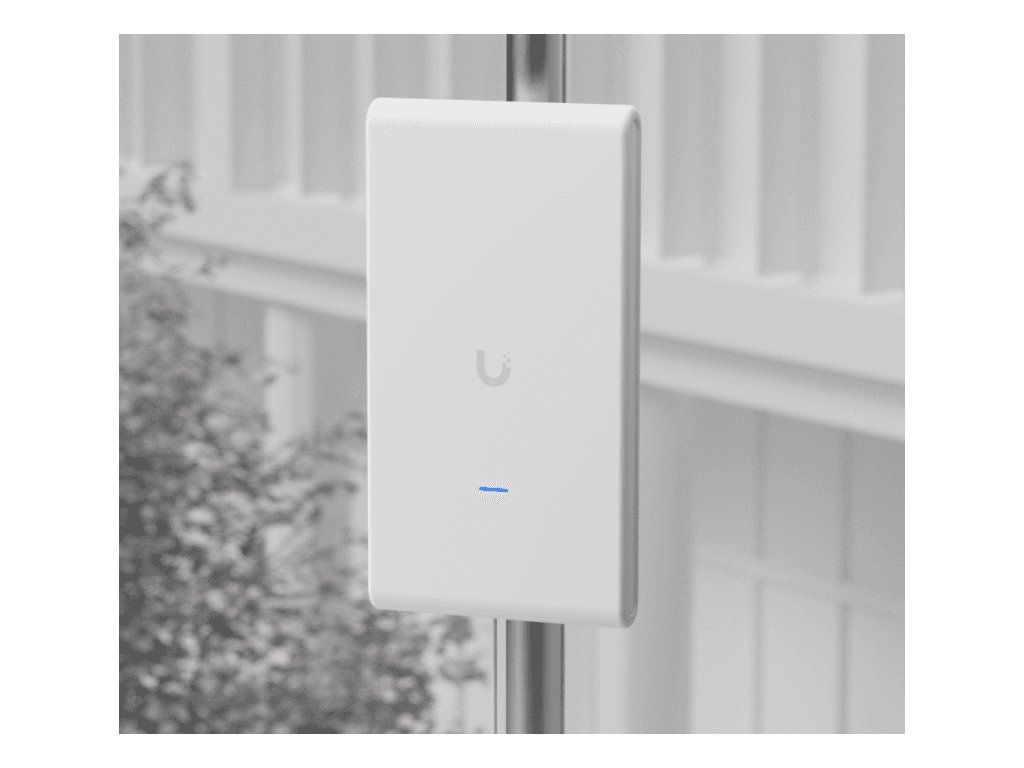

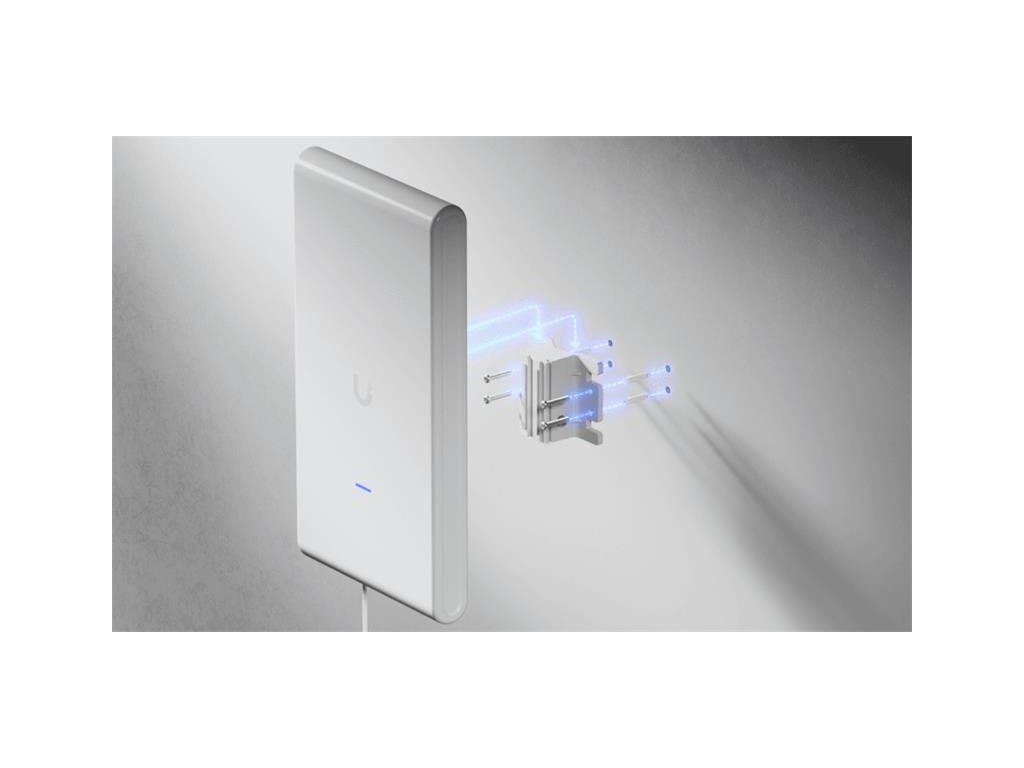

Versatile wall and pole mounting
Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions

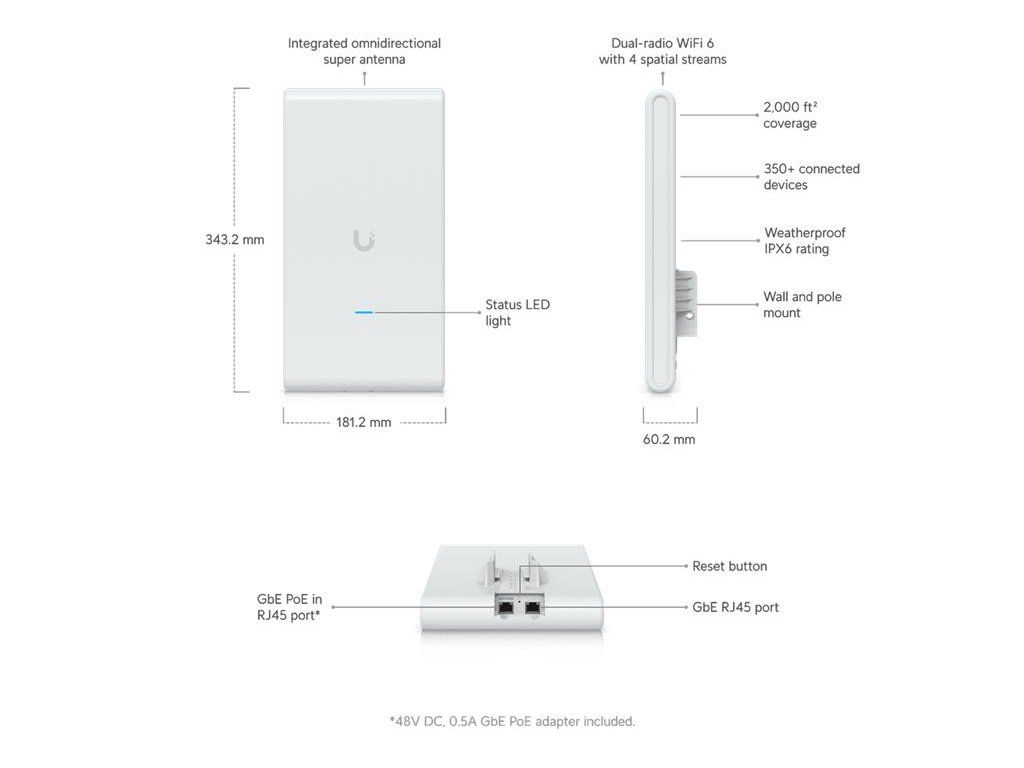

343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight
819 g (1.8 lb)
Enclosure material
UV-stabilized polycarbonate
Mount material
Aluminum alloy, steel
Pole mount diameter
1~2.5" on pipe outer diameter
Weatherproofing
IPX6
Hardware
Networking interface (2) GbE RJ45 ports
Management interface Ethernet
WiFi
Power method PoE
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (Included)
Supported voltage range 42.5—57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz 22 dBm
5 GHz 27 dBm
6 GHz –
MIMO
2.4 GHz 2 x 2 (DL/UL MU MIMO)
5 GHz 2 x 2 (DL/UL MU MIMO)
6 GHz –
Throughput rate
2.4 GHz 573.5 Mbps
5 GHz 2.4 Gbps
6 GHz –
Antenna gain
2.4 GHz 8 dBi
5 GHz 8 dBi
6 GHz -
LEDs White/blue
Button Factory reset

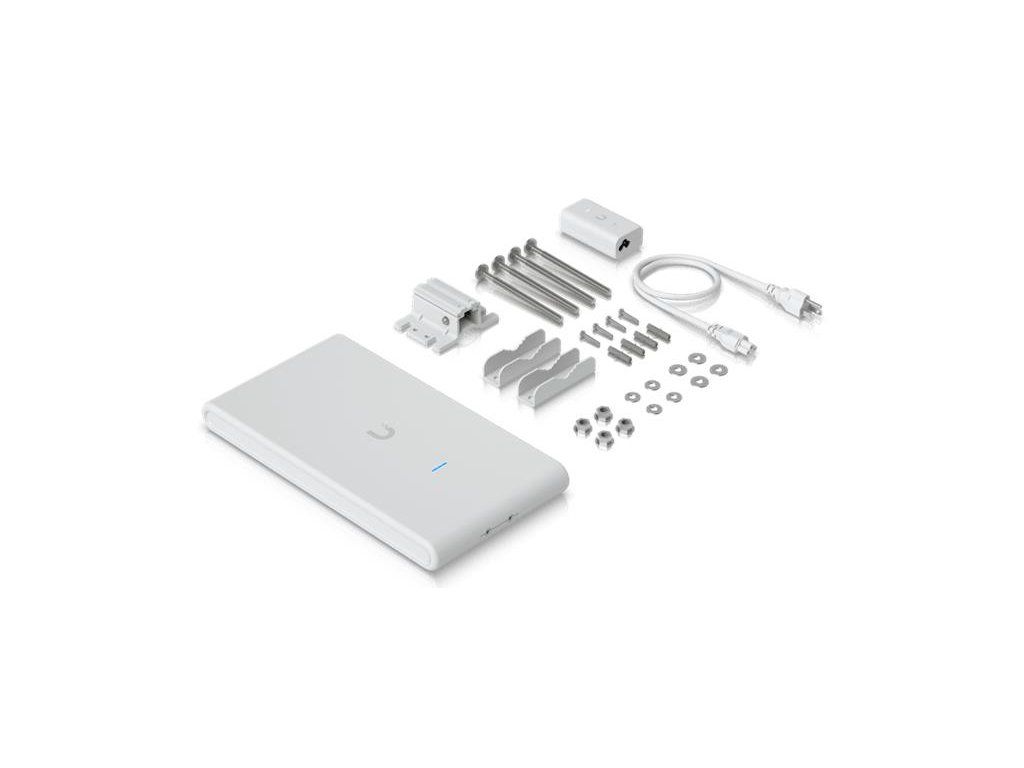

Mounting Wall, pole (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network
Version 8.1.127 and later
Dodatočné parametre
| Kategória: | WiFi routery a AP |
|---|---|
| Záruka: | 744 dní |
| Hmotnosť: | 2.08 kg |
| EAN: | 810084695180 |
| PoE príkon [W]: | 9 |
| MU-MIMO: | Áno |
| Počet kusov v balení [ks]: | 1 |
| Kategória: | Ubiquiti - UniFi AP |
| Dátová priepustnosť 5 GHz [Mb/s]: | 2400 |
| Dátová priepustnosť 2,4GHz [Mb/s]: | 600 |
| Kmitočet: | 2,4 + 5 GHz |
| WIFI standard: | WIFI 6 |
| Prevedenie: | Outdoor |
| Dátová priepustnosť 6 GHz [Mb/s]: | 0 |
| Napájací zdroj v balení: | Áno |
| MPN: | U6-MESH-PRO |
