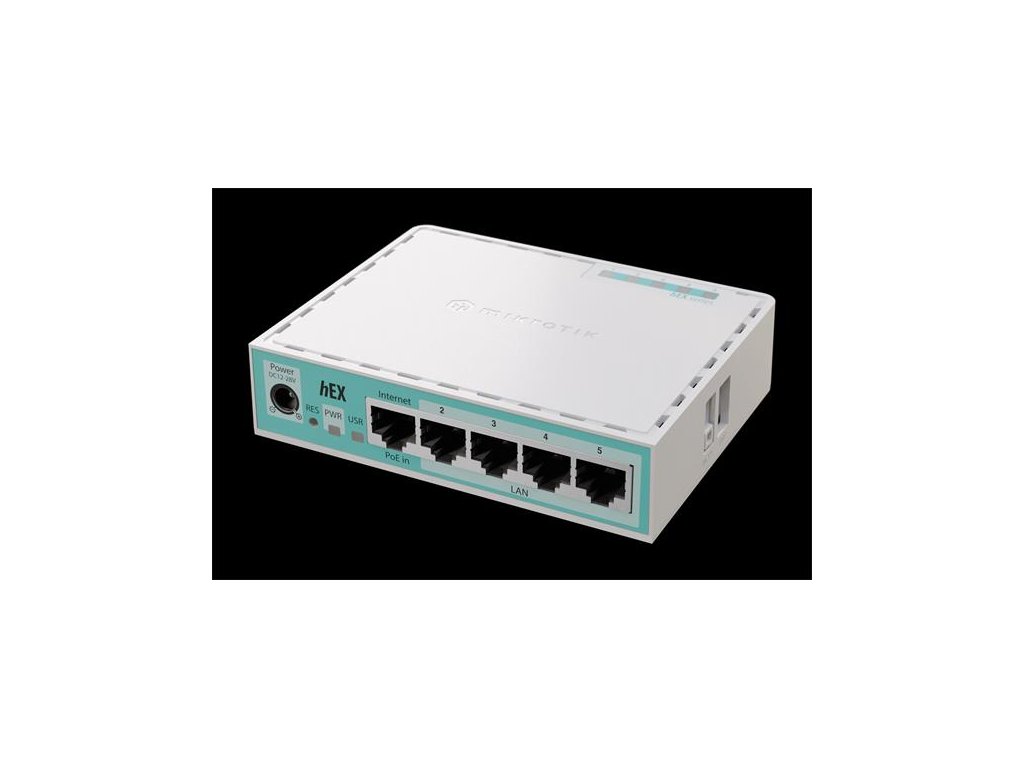

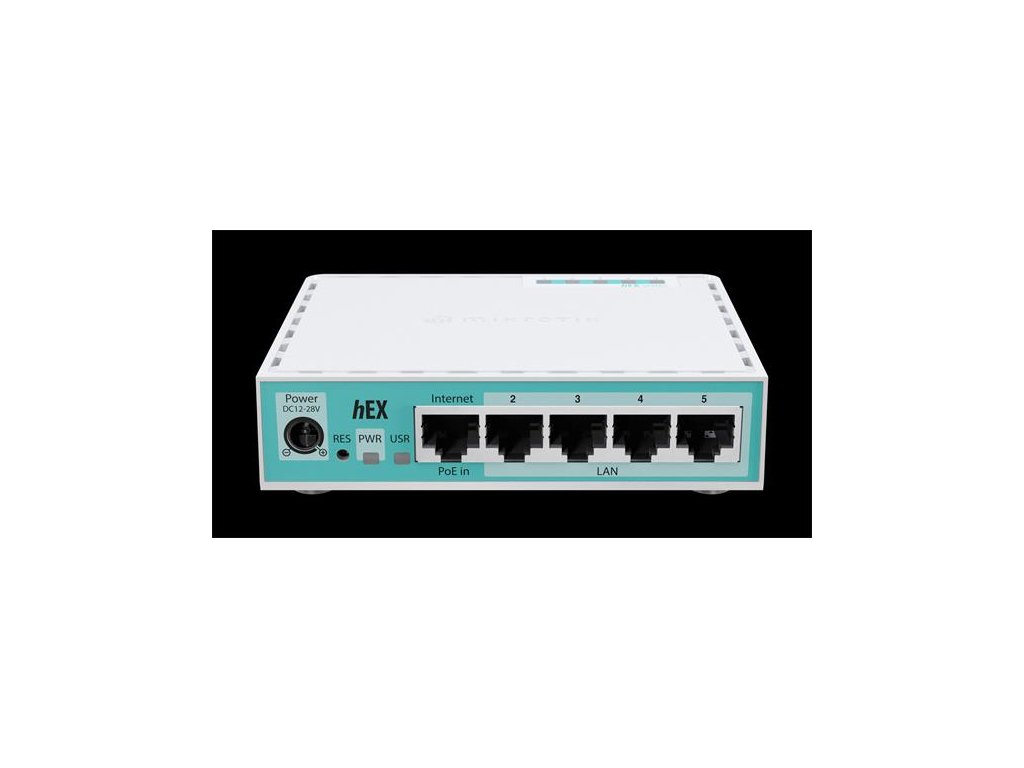

MIKROTIK hEX (2024 version) with RouterOS L4 license, desktop case E50UG

Podrobný popis

Specifications

Details

Product code E50UG

Architecture ARM

CPU EN7562CT

CPU core count 2

CPU nominal frequency 950 MHz

Switch chip model EN7562CT

Dimensions 113x89x28mm

RouterOS license 4

Operating System RouterOS v7

Size of RAM 512 MB

Storage size 128 MB

Storage type NAND

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 70°C



Powering

Details

Number of DC inputs 2 (PoE-IN, DC jack)

DC jack input Voltage 12-28 V

Max power consumption 10 W

Max power consumption without attachments 4 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 12-28 V



Ethernet

Details

10/100/1000 Ethernet ports 5



Peripherals

Details

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1



Other

Details

CPU temperature monitor Yes

PCB temperature monitor Yes

Voltage Monitor Yes

Mode button Yes



Certification & Approvals

Details

Certification CE, EAC, ROHS

IP 20
